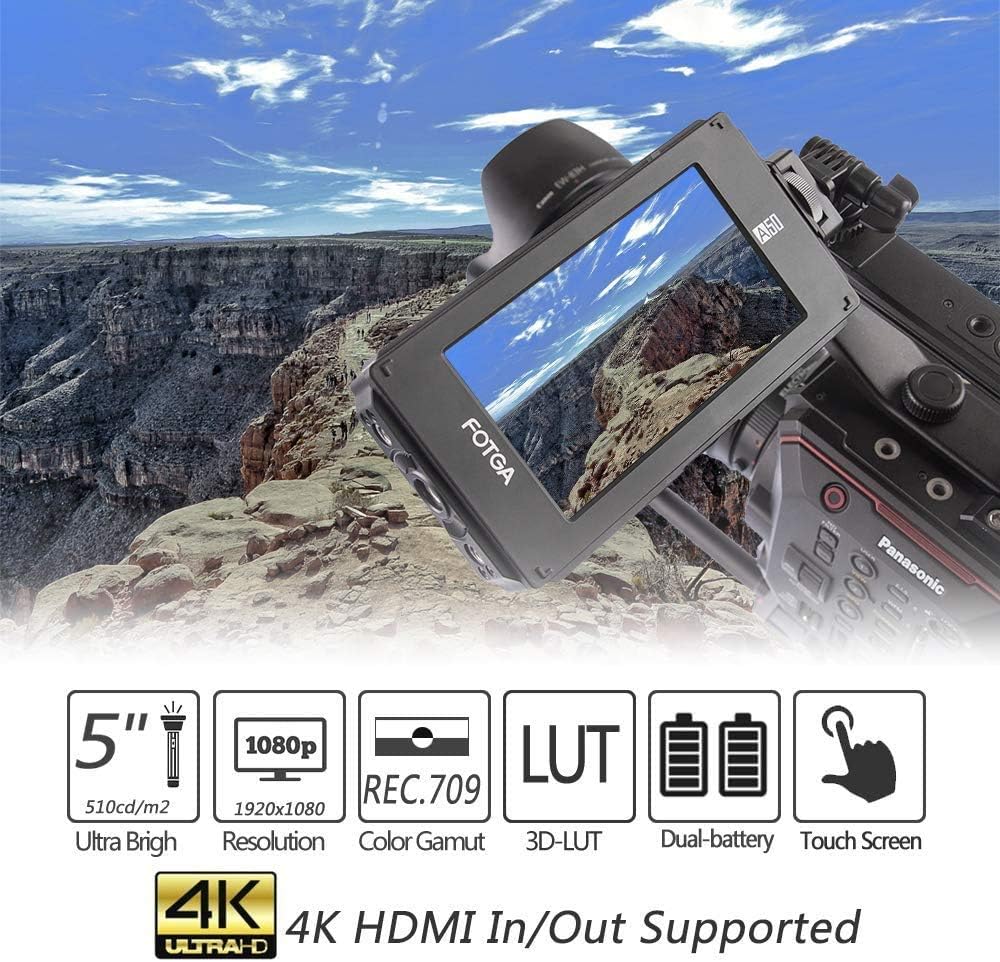

5 Inch Full HD 1920x1080 Touch Screen On-Camera Field Monitor with HDMI 4K Input/Output and Dual NP-F Battery Mount M3074
5 Inch Full HD 1920x1080 Touch Screen On-Camera Field Monitor with HDMI 4K Input/Output and Dual NP-F Battery Mount M3074

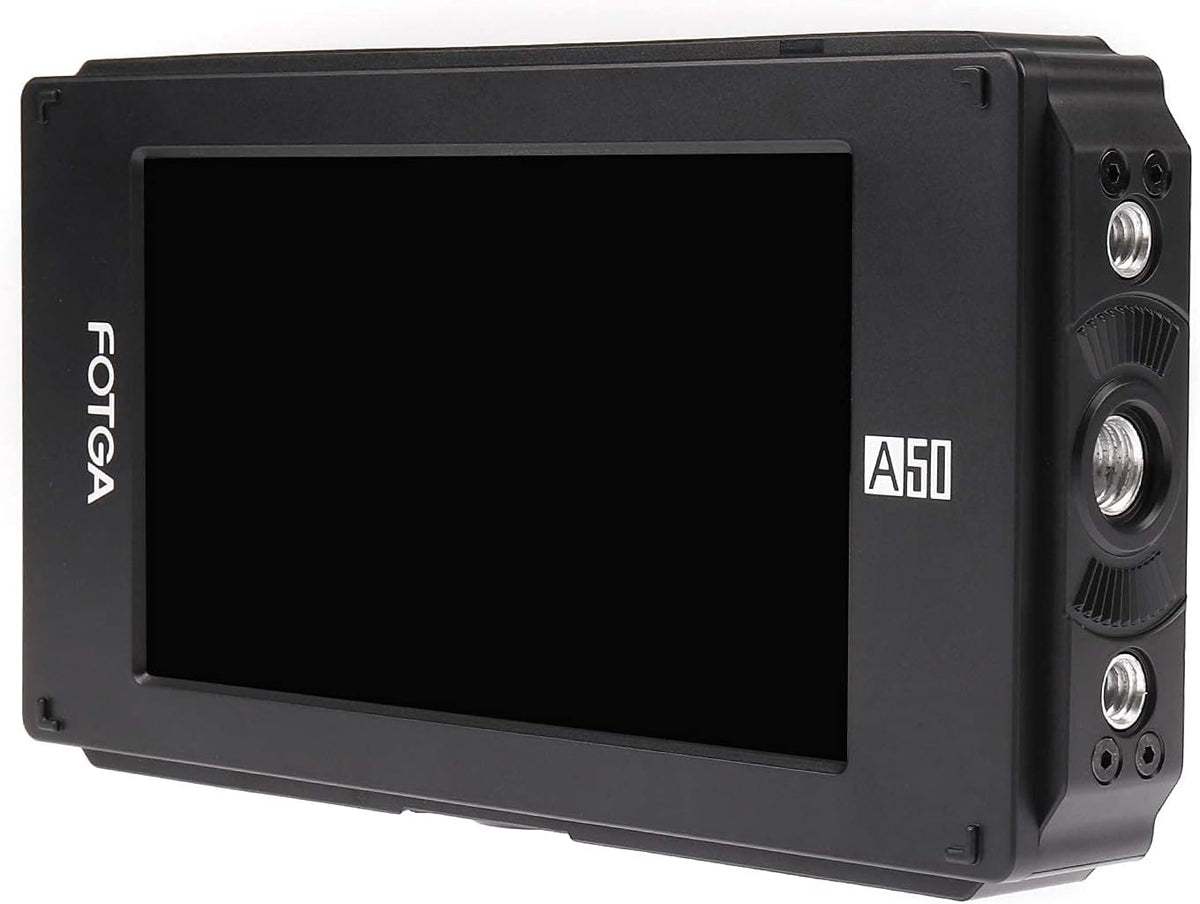

This A50 series Professional on-camera monitor is made of aviation aluminum and high-strength engineering plastics.Lightweight but strong.comes with silent operation button to facilitate your operation.support shortcut button setting.
Full HD 1920x1080 resolution,It supports HDMI 4K input/output.3.5mm headphone output.Compatible with almost all cameras and camcorders.USB port for firmware upgrade.Multiple connecting holes (1/4',3/8' ,M6 and cold shoe connector)
Supports 3D LUT function.There are default undeletable 5 inter LUT files,and you can also import extra 8 LUT files.

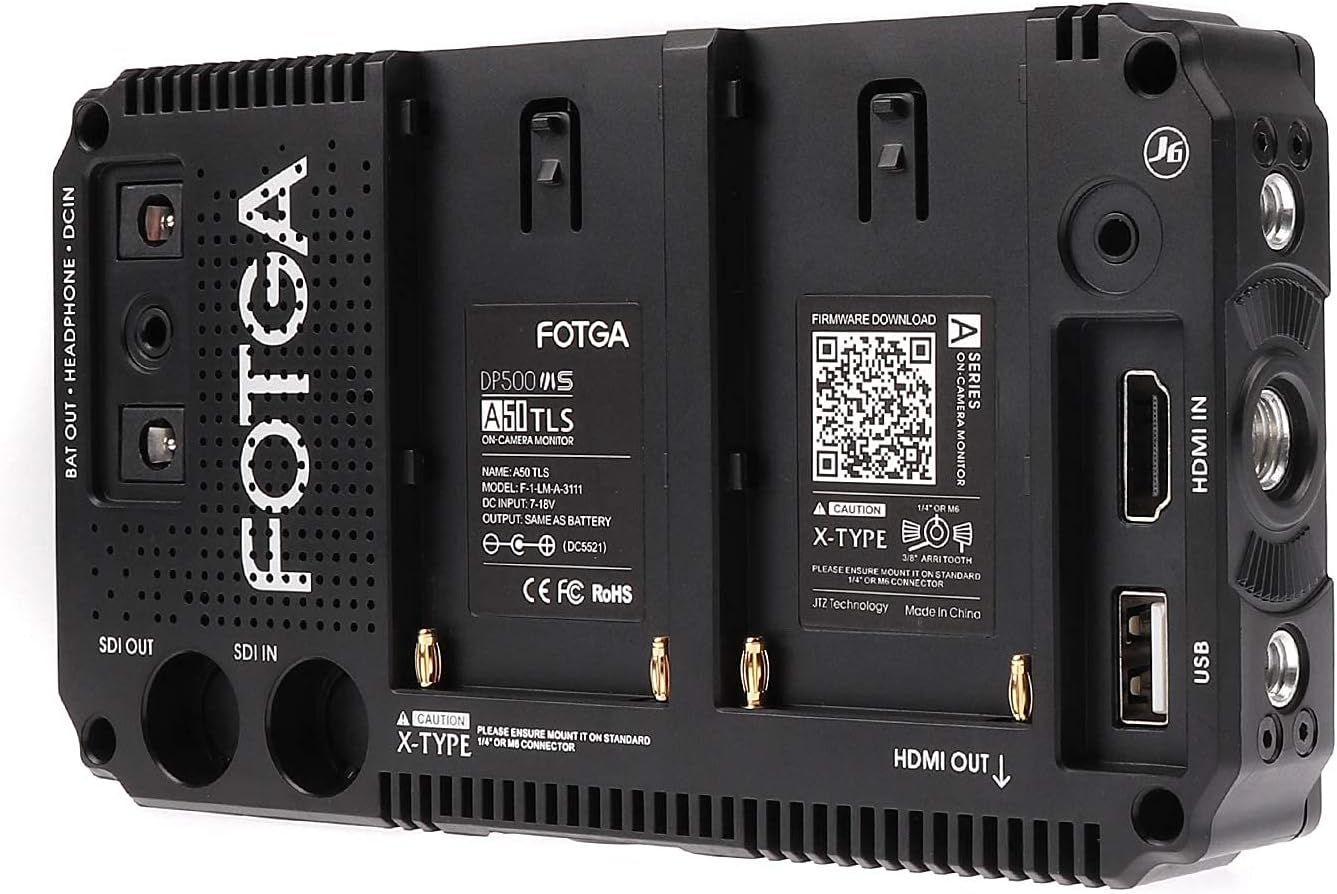

The monitor is designed with Dual battery compartment for NP-F NP-FM/QM batteries,and this would extend your working time greatly. You can also use LP-E6 battery (battery plate for LP-E6 need to buy separately).When power by NP-F or LP-E6 battery or a dummy battery,there is also a battery output for power your camera directly from monitor.
Touch screen control allows a quick and accurate control directly through the sceen,you can set the menu facing to the screen,no need to check the button one by one.It also supports physical buttons control.the corresponding function of buttons can be customized according to your need.
This monitor is special designed for all cameras with good features:Histogram,peaking filter,false colors,zebra exposure,FHD,embedded audio,pixel- to-pixel,check field,image flip,anamorphic,image freeze,zoom-in,etc.

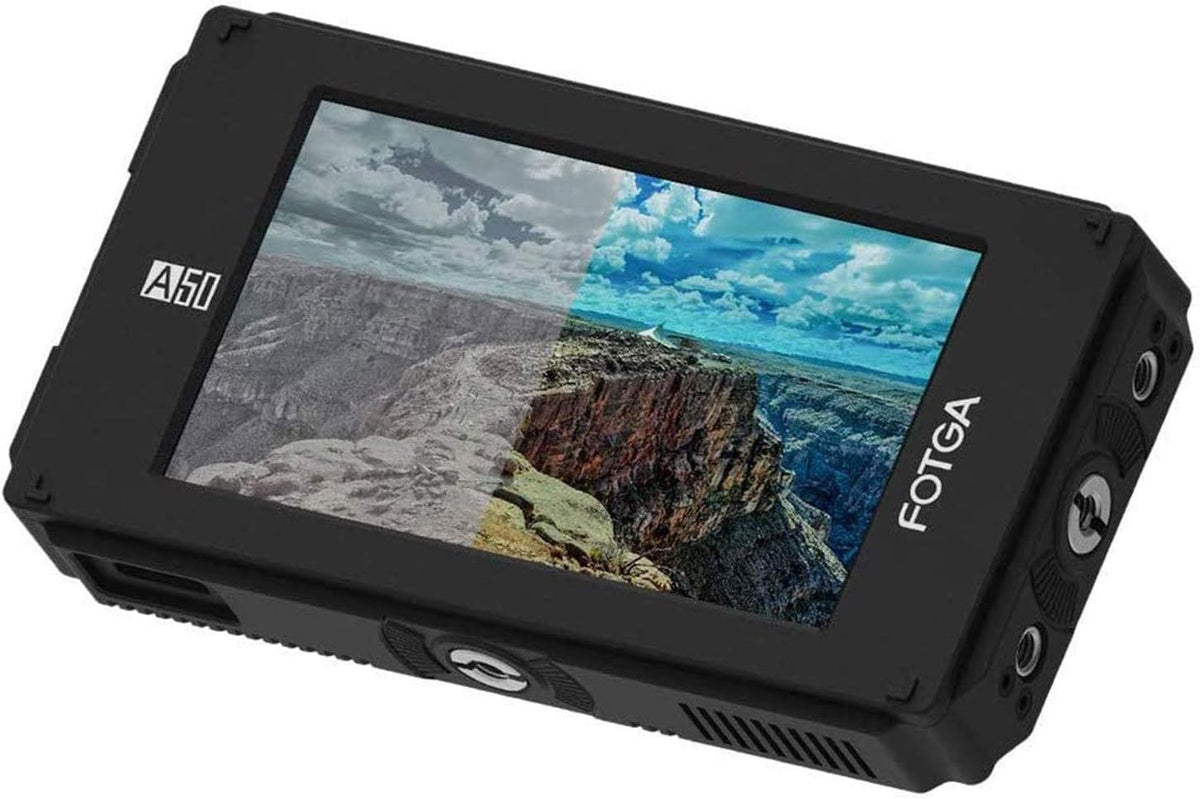

3D LUT movie color calibration and real-time preview
Supports 3D LUT function,advanced image processing chip and technology,allows previewing your works in advance.
Uninterrupted Power Supply (AC power & Dual NP-F batteries)
Supports dual NP-F battery( NP-F,NP-FM/QM batteries),which will greatly extend your battery working time.You can also use an adapter plate for LP-E6 battery (need to buy separately,then you can use LP-E6 battery alone,you can also use a NP-P battery and a LP-E6 battery at the same time.
It also supports AC Power supply.
There is Battery output for power your camera and monitor at same time.But camera can get power at the same time only when you use NP-F series or LP-E6 battery (s) and through DC coupler.it can not be powered when use AC power cable.
Features:
Screen type:Wide Color Gamut with IPS display
Screen size:5 Inch
Resolution: 1920x1080

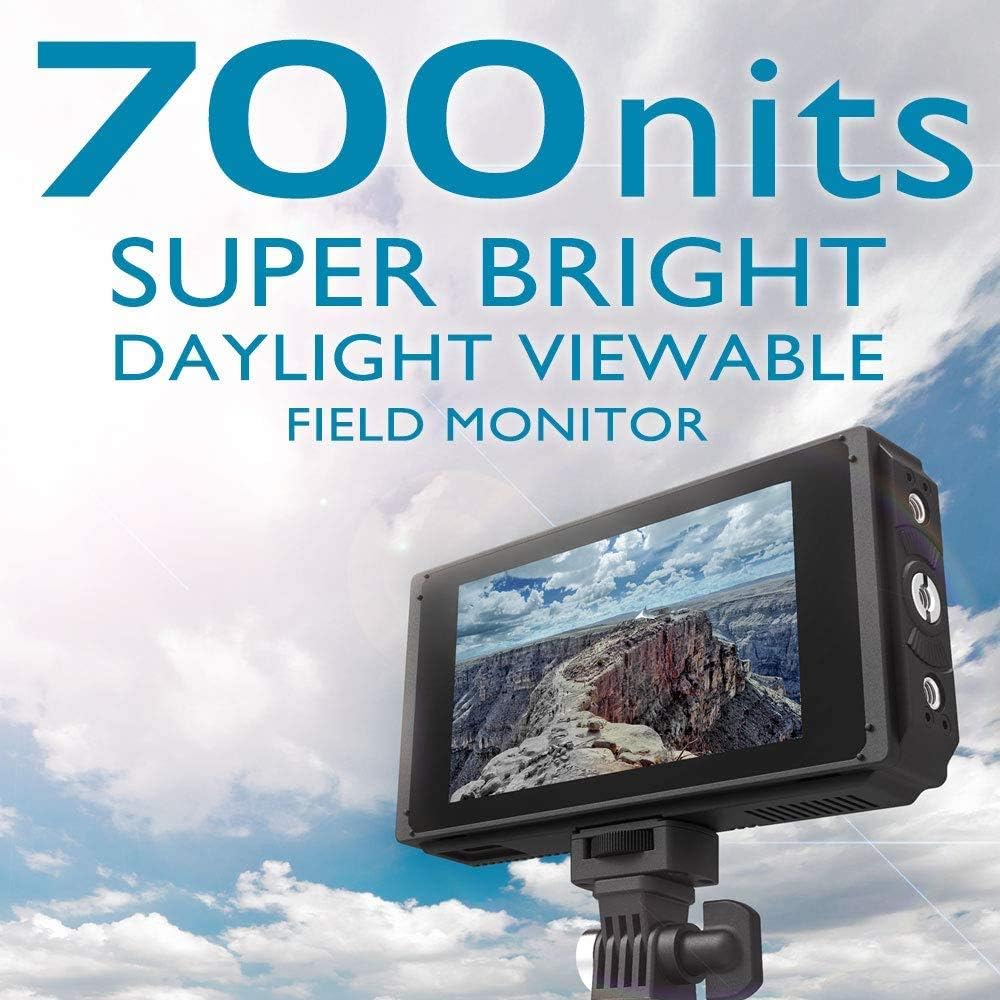

Brightness: 700cd/m² (please update to firmward V2.0)
Contrast Ratio: 1500:1
Viewing Angle: 170°
Input Voltage: DC 7-18V
Size: 162x87x24.3(mm)
Net Weight: About 200g
Anamorphic Mode (2.35:1,1.33:1,)
Image Flip(vertically) / Image Freeze / Safety marker / Center Marker
Ratio marker (4:3,16:9,16:10,5:4,1.85:1,2.35:1)
Adjustable color temperature

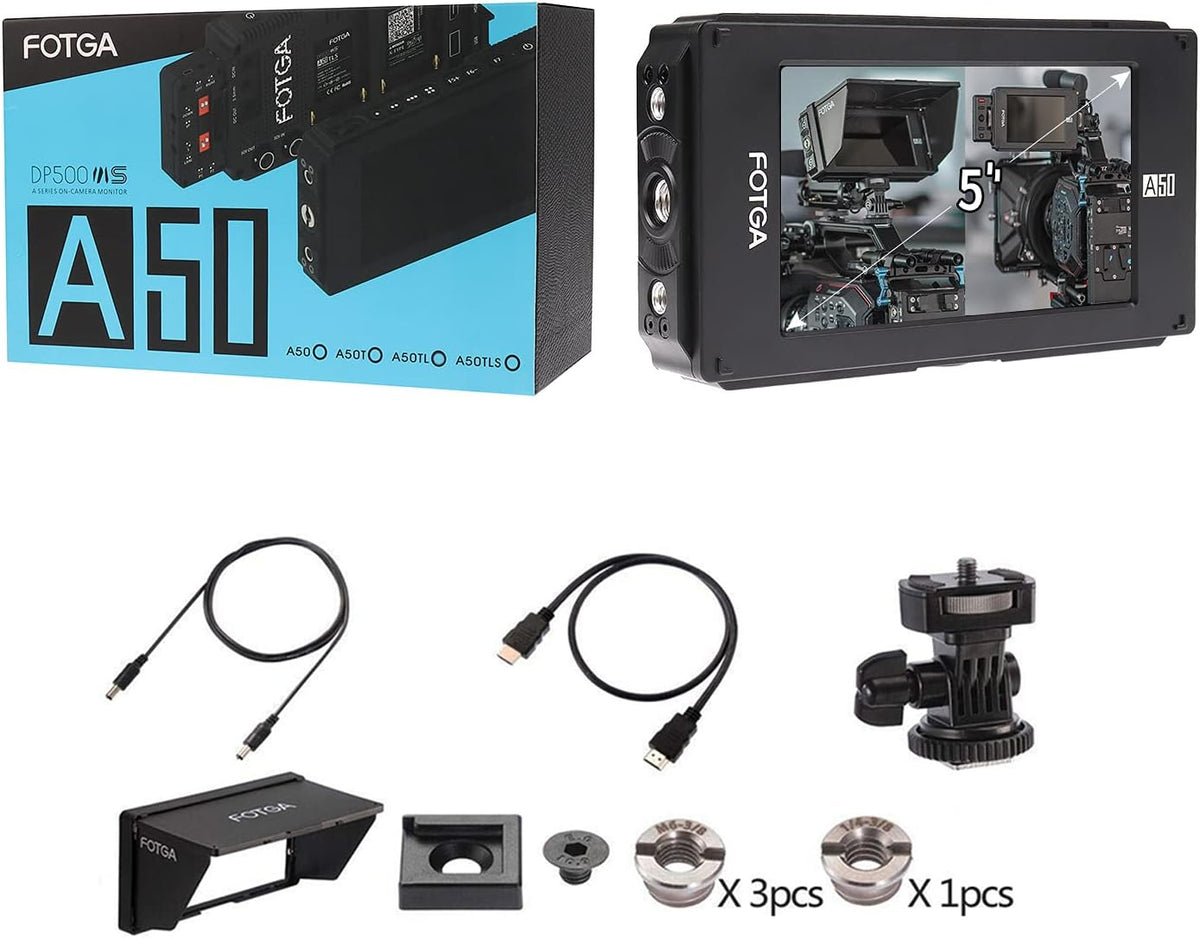

Package includes:
1 x A50TL monitor
1 x hot shoe mount adapter
1 x sunshade hood
1 x cold shoe adapter
1 x HDMI cable
1 x DC power cable
1 x 3/8'-1/4” adapter
3 x 3/8”-M6 adapter
